What is a 6F2 Vacuum Tube Do: Understanding Its Function

A 6F2 vacuum tube is a type of electronic component. It amplifies electrical signals in various circuits.

But what exactly does a 6F2 vacuum tube do, and why is it important? Vacuum tubes, like the 6F2, play a vital role in many electronic devices. They can be found in radios, amplifiers, and old television sets. The 6F2 vacuum tube specifically combines two functions: a triode and a pentode.

This makes it versatile and valuable in different applications. Understanding its purpose helps in appreciating the history and evolution of electronics. Let’s dive deeper into the workings and uses of the 6F2 vacuum tube to see why it remains relevant today.

Introduction To 6f2 Vacuum Tube

The 6F2 vacuum tube is a fascinating piece of technology. It has played a significant role in the history of electronics. This blog post will introduce you to the 6F2 vacuum tube. We will explore its history and basic description.

Historical Background

The 6F2 vacuum tube was developed during the mid-20th century. It was used in various electronic devices. These devices included radios, televisions, and amplifiers. The 6F2 tube helped in signal amplification and modulation. During this period, vacuum tubes were essential components in electronics. They were the backbone of early electronic circuits.

Basic Description

The 6F2 vacuum tube is a dual triode-pentode tube. This means it contains two different types of tubes in one package. The triode section is used for amplification. The pentode section is used for higher power applications. The tube operates by controlling the flow of electrons. It has multiple pins for different connections. Each pin serves a specific function. The 6F2 tube is known for its reliability and efficiency. It is still used by enthusiasts and vintage electronics hobbyists today.

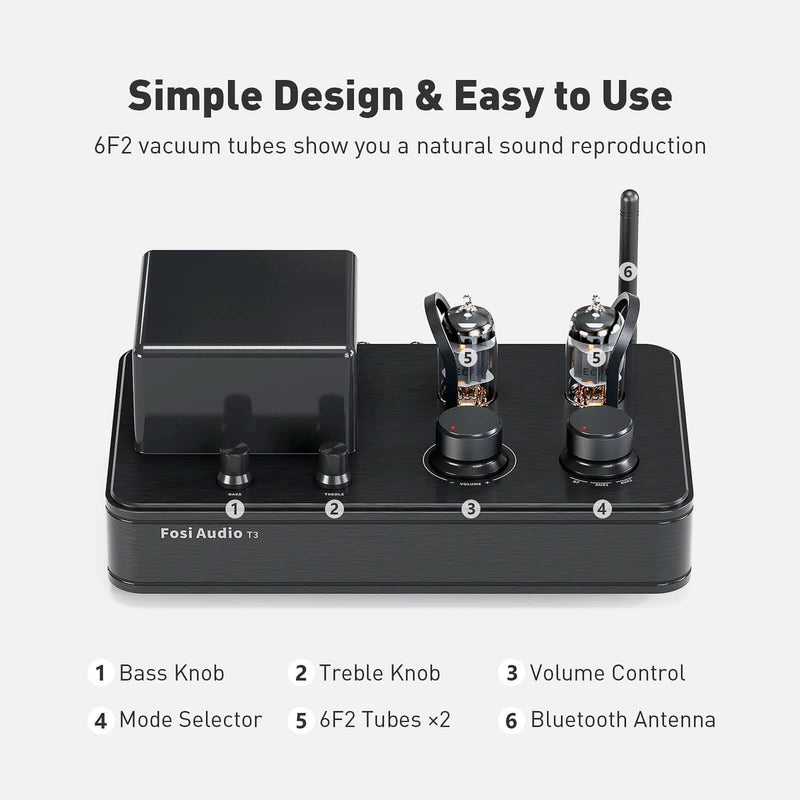

Credit: fosiaudio.com

Components Of A 6f2 Vacuum Tube

Understanding the components of a 6F2 vacuum tube helps in grasping its function. Each part plays a key role in its operation. Let’s dive into the main components: the cathode, anode, and grid.

Cathode

The cathode is the electron emitter. It is heated to release electrons. These electrons are essential for the tube’s function. The cathode’s material often includes metals like tungsten. Its purpose is to create a steady flow of electrons. This flow is vital for the tube’s operation.

Anode

The anode, also known as the plate, collects electrons. It is positively charged to attract the negatively charged electrons. This movement of electrons from the cathode to the anode creates a current. The anode is usually made of metal. Its design helps in efficiently collecting electrons.

Grid

The grid controls the flow of electrons between the cathode and anode. It is placed between the cathode and the anode. The grid can vary the current passing through the tube. This allows for amplification or modulation of signals. The grid’s material is often fine wire mesh. It plays a crucial role in the tube’s function.

How 6f2 Vacuum Tubes Work

The 6F2 vacuum tube is an essential component in various electronic devices. It amplifies signals, ensuring clear and powerful sound. Understanding how it works helps in utilizing it effectively.

Electron Emission

The 6F2 vacuum tube operates through electron emission. Inside the tube, there is a heated cathode. The heat causes electrons to be released from the cathode. These electrons then move towards the anode, creating a flow of current.

This process is key to the vacuum tube’s operation. Without electron emission, there would be no amplification. The control grid between the cathode and anode regulates this flow. By adjusting the grid voltage, the current flow can be controlled. This is the first step in the amplification process.

Amplification Process

The 6F2 vacuum tube amplifies signals through a series of steps. Initially, a small input signal is applied to the control grid. This input signal modulates the flow of electrons from the cathode to the anode. As the input signal varies, the current flow changes correspondingly.

This varying current produces a larger output signal at the anode. The small input signal results in a much larger output signal. This amplification is crucial in many electronic applications. Radios, televisions, and amplifiers rely on this process. The 6F2 vacuum tube ensures the signal strength is sufficient for these devices.

Applications Of 6f2 Vacuum Tubes

The 6F2 vacuum tube is versatile and used in many applications. These tubes have been popular in electronics for a long time. They are reliable and efficient. Below are some key applications of the 6F2 vacuum tubes.

Audio Equipment

6F2 vacuum tubes are vital in audio equipment. They help produce clear and warm sound. Many audiophiles prefer tube amplifiers for this reason. The tubes work by amplifying the audio signals. This makes the sound richer and more natural.

Some common uses in audio equipment include:

• Amplifiers
• Pre-amplifiers
• Microphone preamps
• Guitar amplifiers

These tubes are often found in high-end audio systems. They can also be used in home audio systems. This is because they offer superior sound quality.

Radio Technology

The 6F2 vacuum tubes play a crucial role in radio technology. They are used in both transmitters and receivers. The tubes help in modulating and amplifying signals. This ensures clear and strong radio broadcasts.

Key applications in radio technology include:

• AM and FM transmitters
• Shortwave radios
• Ham radios
• Communication receivers

In radio technology, these tubes are valued for their stability. They offer consistent performance over time. This makes them ideal for reliable communication.

In summary, the 6F2 vacuum tube is essential in both audio and radio technology. Its reliability and efficiency make it a popular choice in these fields.

Advantages Of Using 6f2 Vacuum Tubes

6F2 vacuum tubes have a rich history in the world of audio equipment. They offer several advantages, making them a favorite among audiophiles. Let’s explore some key benefits of using 6F2 vacuum tubes in your audio setup.

Sound Quality

The sound quality of 6F2 vacuum tubes is exceptional. These tubes produce warm, rich tones that enhance the listening experience. Many audiophiles prefer them for their ability to create a natural and immersive soundstage. The clarity and detail in the audio output are unmatched. This makes the music feel more alive and engaging.

Durability

Durability is another significant advantage of 6F2 vacuum tubes. These tubes are built to last. They can withstand high levels of stress and still perform well. This longevity means less frequent replacements, saving time and money. Their robust construction ensures they maintain their performance over time, providing consistent sound quality.

Challenges With 6f2 Vacuum Tubes

The 6F2 vacuum tube has been a crucial component in many electronic devices. Yet, it presents several challenges. Understanding these issues can help in better maintenance and operation.

Maintenance

Maintaining a 6F2 vacuum tube can be a complex task. Regular checks are vital to ensure long-term performance. Dust accumulation can impact its efficiency. Wipe the surface gently with a soft cloth to remove dust.

Another issue is the tube’s fragility. Handle with care to avoid breakage. Always inspect for cracks or chips. Even minor damage can lead to malfunction. Also, periodic testing is necessary. Use a tube tester to check its condition. Replace if performance drops significantly.

Power Consumption

6F2 vacuum tubes are known for high power consumption. They require a steady power supply for optimal performance. This can be a challenge in areas with unstable electricity. Use a reliable power source to avoid interruptions.

Another factor is heat generation. High power usage results in excess heat. Ensure proper ventilation to prevent overheating. Install cooling fans if necessary. This helps maintain the tube’s efficiency and prolongs its lifespan.

Modern Uses Of 6f2 Vacuum Tubes

The 6F2 vacuum tube has seen a resurgence in modern times. Enthusiasts and professionals alike find new uses for these classic components. With their unique properties, 6F2 tubes are valuable in specific applications.

Niche Markets

In niche markets, the 6F2 vacuum tube shines. Audiophiles prefer them for their rich sound quality. They believe these tubes provide a warmer, more authentic audio experience. This makes them popular in high-end audio equipment. Musicians also use them in guitar amplifiers. The tube’s distinctive sound appeals to many artists.

Another niche market is the radio hobbyist community. Vintage radio restorers often seek out 6F2 tubes. They need authentic parts to maintain the integrity of classic radios. This demand keeps the tube relevant today. Collectors also value these tubes for their historical significance.

Retro Technology

Retro technology enthusiasts love the 6F2 vacuum tube. They use it in various old-school projects. These projects often aim to recreate or preserve vintage technology. For example, some build tube-based computers and televisions. These projects celebrate the history of electronics.

Additionally, DIY electronics hobbyists use 6F2 tubes in custom builds. They enjoy the challenge of working with these components. The aesthetic appeal of glowing tubes is another attraction. It adds a unique look to their creations. Retro technology projects often showcase the beauty and functionality of 6F2 tubes.

Credit: www.reichelt.com

Future Of Vacuum Tube Technology

The future of vacuum tube technology holds promise and intrigue. Though modern electronics rely on semiconductors, vacuum tubes still have unique applications. Their future seems bright with ongoing innovations and a focus on sustainability.

Innovations

Innovations in vacuum tube technology are driving the industry forward. Engineers are developing new materials to improve efficiency. These materials can withstand higher temperatures and voltages.

Research focuses on miniaturizing vacuum tubes. Smaller tubes can fit into more devices. This enhances their use in modern electronics, such as high-frequency communication systems and audio amplifiers.

Another innovation involves combining vacuum tubes with solid-state components. This hybrid approach offers the benefits of both technologies. Enhanced performance and reliability are the key advantages.

Sustainability

Sustainability is a growing concern in vacuum tube technology. Researchers aim to reduce the environmental impact of vacuum tubes. They are exploring eco-friendly materials for construction.

Recycling old vacuum tubes is another focus area. Proper recycling methods can minimize waste. This approach ensures that valuable materials are reused.

Energy efficiency is also a priority. Modern vacuum tubes are designed to consume less power. This reduces their carbon footprint and operational costs.

The table below highlights key innovations and sustainability efforts in vacuum tube technology:

Innovation	Sustainability Effort
New Materials	Eco-friendly Construction
Miniaturization	Recycling Methods
Hybrid Components	Energy Efficiency

These advancements ensure that vacuum tube technology remains relevant. The focus on innovations and sustainability will drive its future.

Credit: diyhifisupply.com

Frequently Asked Questions

What Is A 6f2 Vacuum Tube?

A 6F2 vacuum tube is an electronic component used in amplifiers and radio circuits. It combines a triode and a pentode in one envelope.

How Does A 6f2 Vacuum Tube Work?

A 6F2 vacuum tube works by controlling electron flow between its cathode and anode. It amplifies electrical signals in the process.

What Are The Applications Of A 6f2 Vacuum Tube?

A 6F2 vacuum tube is used in audio amplifiers, radio receivers, and signal processing equipment. It is known for its reliability.

Why Choose A 6f2 Vacuum Tube?

Choose a 6F2 vacuum tube for its versatility and reliability. It offers high-quality performance in audio and radio circuits.

Conclusion

The 6F2 vacuum tube is crucial in many vintage electronics. It plays a key role in amplifying signals. Its design ensures efficient performance in radios and TVs. Understanding this tube helps in appreciating classic technology. It also aids in repairing old devices.

Learning about the 6F2 vacuum tube can be both educational and fun. Whether a hobbyist or a technician, this knowledge is valuable. So, explore more and dive into the world of vacuum tubes. Your journey into this classic component will be rewarding.

Happy learning!
