How to Test F150 Vacuum Hose: A Step-by-Step Guide

As an Amazon Associate, I earn from qualifying purchases

Testing the vacuum hose on your F150 can seem daunting. But with the right steps, it’s straightforward.

Your F150’s vacuum hose plays a crucial role in engine performance. A faulty hose can lead to issues like poor acceleration or rough idling. Knowing how to test it can save you time and money. This guide will walk you through the process.

You’ll learn how to identify issues and perform a simple test. By the end, you’ll be confident in ensuring your vacuum hose is in top shape. Let’s get started!

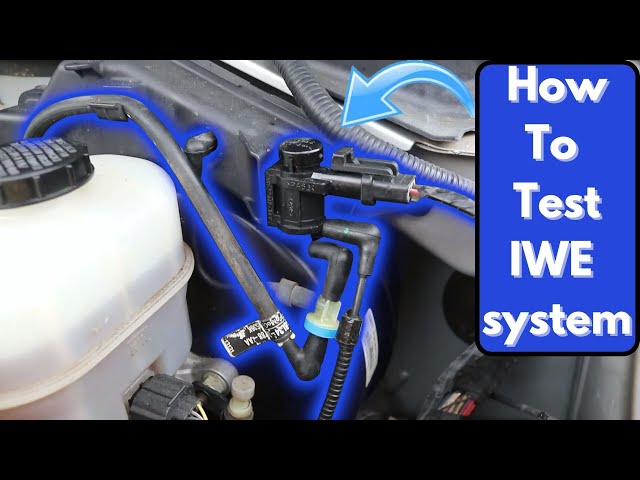

How to Test F150 Vacuum Hose: A Step-by-Step Guide

Credit: www.youtube.com

Tools And Materials

Testing the vacuum hose in your F150 requires specific tools and materials. Being prepared ensures a smoother and faster process. This section covers the essential tools and materials needed for the task.

Essential Tools

Having the right tools is crucial. You will need a few basic tools to get started.

  • Vacuum Gauge: Measures the pressure in the vacuum hose.
  • Hand Vacuum Pump: Helps to test the vacuum system.
  • Screwdrivers: Both flathead and Phillips types are useful.
  • Pliers: Handy for gripping and twisting hoses.
  • Flashlight: Essential for illuminating hard-to-see areas.

Materials Needed

Along with tools, certain materials are necessary to complete the job. These materials help in testing and replacing parts if required.

  • Replacement Hoses: In case the current hose is damaged.
  • Hose Clamps: Secure the hoses in place after testing.
  • Cleaning Solution: Used for cleaning the hose and fittings.
  • Rags: Helpful for cleaning and wiping hands and parts.
  • Sealant: Ensures a tight fit for the hoses.
How to Test F150 Vacuum Hose: A Step-by-Step Guide

Credit: gearsmagazine.com

Preparation

Preparation is key when testing the vacuum hose of your F150. Proper steps ensure accuracy and safety. This section will guide you through the essential preparations.

Safety Precautions

First, park your F150 on a flat surface. Engage the parking brake. Ensure the engine is cool before starting any work. Wear gloves and safety glasses to protect yourself. Keep a fire extinguisher nearby, just in case.

Initial Vehicle Inspection

Inspect the area around the vacuum hose. Look for any visible damage or wear. Check for loose or disconnected hoses. Make sure all connections are secure. A visual inspection can reveal obvious issues.

Next, listen for any unusual noises. Hissing sounds can indicate a vacuum leak. Use a flashlight to check hard-to-see areas. A thorough inspection helps identify potential problems early.

Locating The Vacuum Hose

Testing the vacuum hose in your F150 is a crucial part of vehicle maintenance. The first step is to locate the vacuum hose. This might seem daunting, but breaking it down into smaller steps makes it manageable.

Engine Bay Overview

Begin by opening the hood of your F150. The engine bay is the area where you’ll find the engine and its components. Familiarize yourself with this space as it helps to identify various parts.

Here’s a simple table to help you navigate the engine bay:

Component Location
Engine Center of the bay
Battery Front-left
Air Filter Front-right
Radiator Front-center

Knowing these locations makes it easier to find the vacuum hose.

Identifying The Vacuum Hose

The vacuum hose is usually a small, black hose. It connects different components in the engine. Look for it around the intake manifold or throttle body. These are common areas where the vacuum hose is attached.

Here are some key points to identify the vacuum hose:

  • Color: Usually black or dark-colored
  • Size: Smaller than coolant or fuel hoses
  • Connections: Attached to the intake manifold

Use these points to locate the vacuum hose in your F150. Once you find it, you can proceed with testing.

Visual Inspection

Testing the F150 vacuum hose involves checking for cracks or leaks. Ensure the hose is securely connected. Use soapy water to detect escaping air.

Performing a visual inspection is the first step in testing your F150 vacuum hose. This process can help identify obvious issues without the need for tools. Focus on the condition of the hose and its connections.

Checking For Visible Damage

Look at the entire length of the vacuum hose. Search for cracks, splits, or worn areas. Any visible damage can cause leaks. Leaks affect the hose’s performance. Hold the hose in your hands. Bend it slightly to check its flexibility. If it feels brittle, it might need replacement.

Inspecting Connections

Examine where the hose connects to other parts. Ensure the connections are tight and secure. Loose connections can cause vacuum leaks. Check if the clamps are in place and working. If a clamp looks worn, replace it. Also, verify that no connectors are broken or missing. Proper connections are vital for the hose to function correctly.
“`

Using A Vacuum Gauge

To ensure your Ford F150 runs smoothly, checking the vacuum hose is vital. One method to do this is by using a vacuum gauge. This tool helps diagnose potential issues in the vacuum system. Let’s explore how to use a vacuum gauge effectively.

Setting Up The Gauge

First, locate the vacuum hose in your F150. It connects the intake manifold to various components. Once found, disconnect the hose.

Next, connect the vacuum gauge to the hose. Ensure a tight fit to avoid any air leaks. A loose connection can give false readings.

Now, start your engine. Let it idle for a few minutes to stabilize. The gauge should show a steady reading within a specific range.

Interpreting Results

Normal vacuum readings for an F150 at idle are between 17-22 inches of mercury (Hg). A steady reading within this range indicates a healthy system.

If the reading is below 17 inches, there might be a leak. Check all connections and hoses for damage. A reading above 22 inches may indicate a blockage or restriction.

Here is a simple table to help interpret the results:

Reading (in Hg) Possible Condition
Below 17 Vacuum Leak
17-22 Normal
Above 22 Blockage or Restriction

If you find abnormal readings, inspect the vacuum hoses for cracks or damage. Replace any faulty parts to ensure optimal performance.

How to Test F150 Vacuum Hose: A Step-by-Step Guide

Credit: www.f150ecoboost.net

Performing A Smoke Test

Testing the vacuum hose of your F150 is crucial. A smoke test helps you find leaks fast. It uses smoke to show where air escapes. This method is effective and easy to do at home. Below, we will guide you through the steps.

Preparing The Smoke Machine

First, get a smoke machine. You can rent or buy one. Follow these steps to prepare it:

  1. Place the smoke machine on a flat surface.
  2. Fill the machine with the recommended fluid. Check the manual for instructions.
  3. Connect the machine to a power source. Use a standard outlet.
  4. Turn the machine on and wait for it to heat up. This takes a few minutes.

Once the machine is ready, you can start the test.

Detecting Leaks

Now, you will use the smoke machine to find leaks. Follow these steps:

  1. Locate the vacuum hose on your F150. It is usually under the hood.
  2. Attach the machine’s hose to the vacuum hose.
  3. Turn on the smoke machine to release smoke into the vacuum hose.
  4. Watch for smoke escaping from the hose. This shows the location of the leak.

If you see smoke, mark the spot with a marker. Fix the leak with a new hose or tape. This will improve your F150’s performance.

Regular checks ensure your vehicle runs smoothly. Perform a smoke test every few months.

Replacing A Faulty Hose

Over time, vacuum hoses in your F150 may wear out or get damaged. Replacing a faulty hose is essential to maintain the vehicle’s performance. It ensures smooth engine operation and prevents potential issues. This section will guide you through choosing and installing a new vacuum hose.

Choosing A Replacement Hose

Select a hose that matches the specifications of your F150. Refer to the owner’s manual for the correct size and type. Quality is crucial; choose a hose made of durable material. Silicon hoses are often recommended for their longevity. Ensure the hose can withstand high temperatures and pressure.

Installation Steps

Begin by locating the faulty hose in your F150. Use pliers to remove the clamps securing the hose. Carefully detach the hose from the fittings. Check the fittings for any signs of damage. Clean the fittings before attaching the new hose. Measure and cut the replacement hose to the required length.

Slide the new hose onto the fittings. Secure the hose with new clamps to ensure a tight fit. Double-check that the hose is properly connected at both ends. Start the engine to test for any leaks. Listen for any hissing sounds indicating a loose connection.

If everything seems fine, your new hose is installed correctly. Regularly inspect the hose for any wear and tear. This proactive step can prevent future issues.

Post-testing Procedures

After testing your F150 vacuum hose, follow specific steps to ensure everything works smoothly. Proper post-testing procedures help maintain your vehicle’s performance. They also prevent future issues. Here are some important steps to consider.

Rechecking The System

First, recheck all connections. Make sure they are secure. Loose connections can cause leaks. These leaks affect your vehicle’s performance.

Next, inspect the hose for any visible damage. Look for cracks or wear. Replace any damaged parts immediately. This ensures the system stays reliable.

Final Safety Checks

Perform final safety checks to guarantee everything is in order. Start the engine and listen for unusual noises. Any hissing sounds might indicate a problem.

Check for proper vacuum pressure. Use a gauge if needed. Correct pressure ensures the system works efficiently.

Finally, take your vehicle for a short drive. Monitor its performance closely. This step confirms that your repairs were successful.

Frequently Asked Questions

How To Identify A Faulty Vacuum Hose?

Check for cracks, leaks, and wear. Listen for hissing sounds indicating a leak.

What Are The Signs Of A Bad Vacuum Hose?

Engine misfires, rough idling, and reduced fuel efficiency are common signs of a faulty vacuum hose.

Can A Vacuum Hose Affect Engine Performance?

Yes, a faulty vacuum hose can lead to poor engine performance and decreased fuel efficiency.

What Tools Are Needed To Test A Vacuum Hose?

You will need a vacuum gauge, a hand-held vacuum pump, and a visual inspection.

Conclusion

Testing the F150 vacuum hose is essential for vehicle maintenance. Follow the steps carefully to ensure accuracy. Regular checks can prevent bigger issues down the road. Fixing small problems early saves time and money. Remember to use the right tools.

Stay safe while working on your vehicle. Maintaining your F150’s vacuum hose keeps it running smoothly. Your vehicle’s performance depends on proper care. Keep these tips in mind and you’ll be fine. Happy driving!
